You are here: Home / Products / Other Products / RM Series LED Street Light 60-100W

Hot-Selling Products

RM Series LED Street Light 60-100W

Quantity:
  • LL-RM060/080/100-C1
  • Lattice

Product Specification:

Input:100~240Vac

Input frequency: 50 / 60Hz

Power Factor (PF): 0.95

Surge protection level: total mode of 10kV

Operating ambient temperature: -35℃ ~55℃

Working environment humidity: 10%~90%

Color temperature (CCT): 3000K, 4000K, 5000K

Color rendering index (CRI): ≥ 70

Main material: ADC12

IP protection level: IP66

Life life:> 50,000 hours


Features:

Die-cast aluminum shell, efficient heat dissipation performance

Anti-UV optical PC lens

Surface UV-resistant protection spraying

Professional efficient optical design suitable for various road needs

A NB or PLC single-light controller is optional

NEMA socket and optical control switch, short circuit cap, NB controller



Recommended colors:

White R AL9003

Grey, R AL7045

Black R AL9004



Product parameters:

Item No.

LED Chip

Chip Qty (PCS)

Wattage (W)

Light Efficacy (lm/W)

Lumen (lm)

N.W. (kg)

LL-RM100-C1

OSRAM 3030

96

100

130

13000

5.8

LL-RM080-C1

OSRAM 3030

96

80

135

11200

5.8

LL-RM060-C1

OSRAM 3030

96

60

135

9000

5.8

* The above parameters are all typical values.

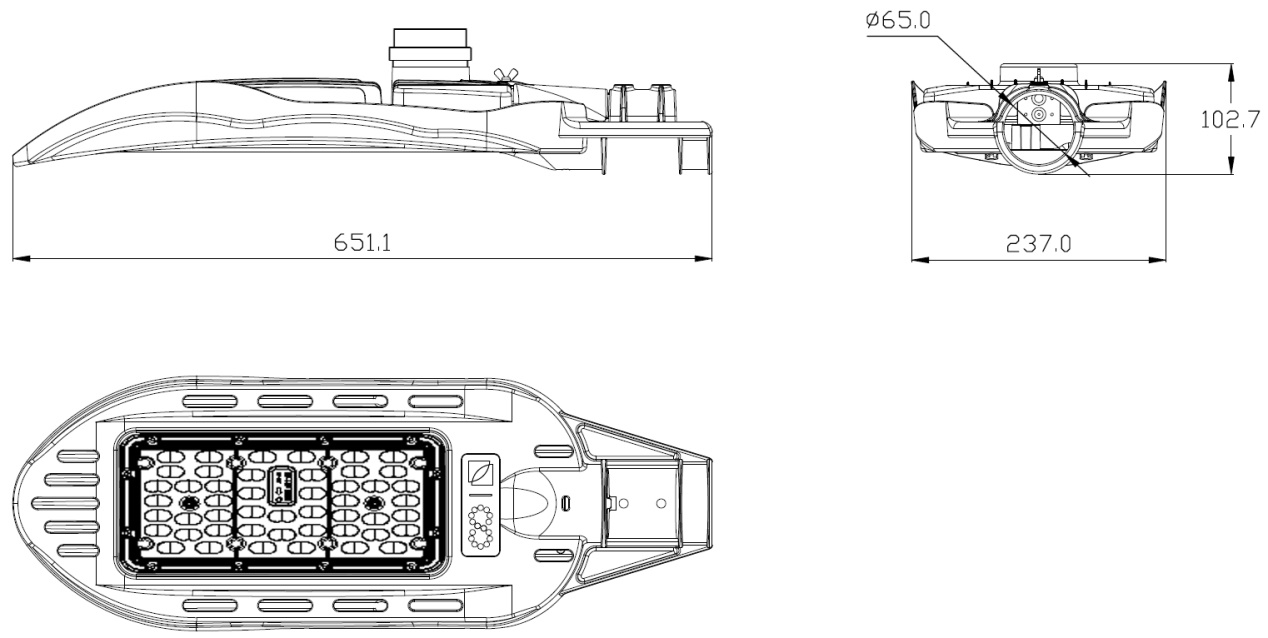

Mechanical dimensions:

Model number

L

(mm)

W

(mm)

H

(mm)

Pipe diameter

(mm)

LL-RM***-C1

651.1

237

102.7

Ø 63

* The above parameters are all typical values.

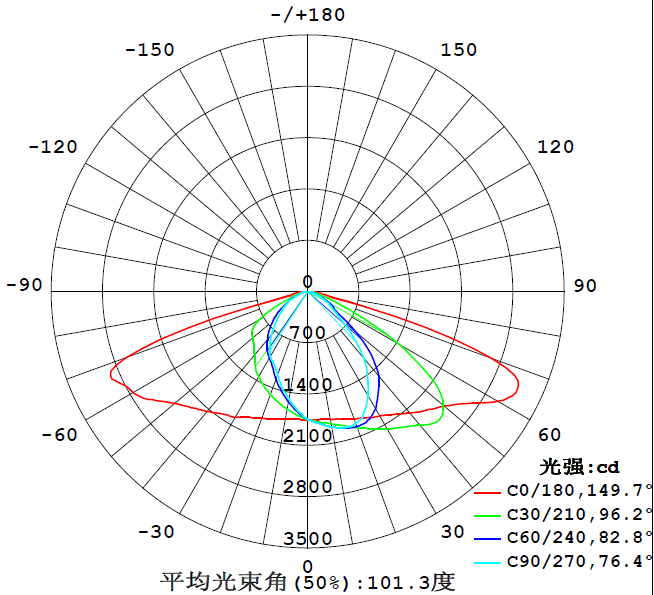

Light distribution curve diagram:




Package dimensions:



Model number

L

(mm)

W

(mm)

H

(mm)

LL-RM***-C1

697

280

180
