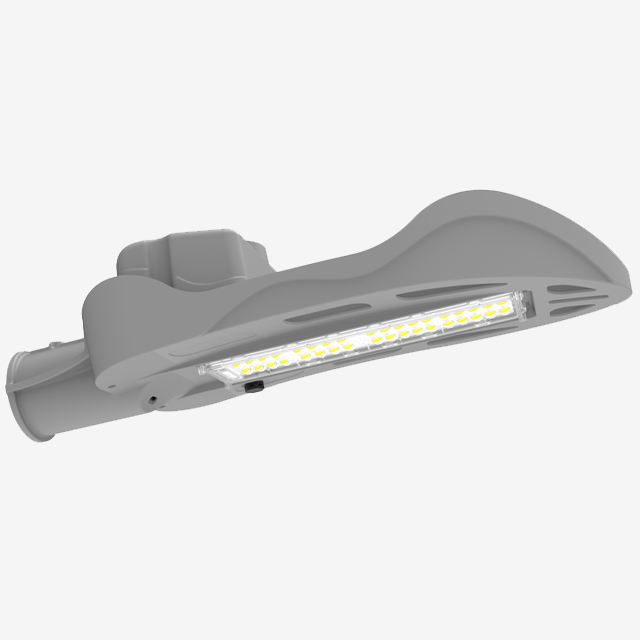

LL-RM040-B0
Lattice
Product Specification:
Input:100~240Vac
Input frequency: 50 / 60Hz
Power Factor (PF): 0.95
Surge protection level: total mode of 10kV
Operating ambient temperature: -35℃ ~55℃
Working environment humidity: 10%~90%
Color temperature (CCT): 3000K, 4000K, 5000K
Color rendering index (CRI): ≥ 70
Main material: ADC12
IP protection level: IP66
Life life:> 50,000 hours
Features:
Die-cast aluminum shell, efficient heat dissipation performance
Anti-UV optical PC lens
Surface UV-resistant protection spraying
Professional efficient optical design suitable for various road needs
A NB or PLC single-light controller is optional
NEMA socket and optical control switch, short circuit cap, NB controller
Recommended colors:
White R AL9003
Grey, R AL7045
Black R AL9004
Product parameters:
Item No. | LED Chip | Chip Qty (PCS) | Wattage (W) | Light Efficacy (lm/W) | Lumen (lm) | N.W. (kg) |
LL-RM 100-B0 | EMC5050 | 36 | 100 | 130 | 13000 | 3.15 |
LL-RM080-B0 | EMC5050 | 36 | 80 | 140 | 11200 | 3.15 |
LL-RM060-B0 | EMC5050 | 36 | 60 | 150 | 9000 | 2.95 |
* The above parameters are all typical values.

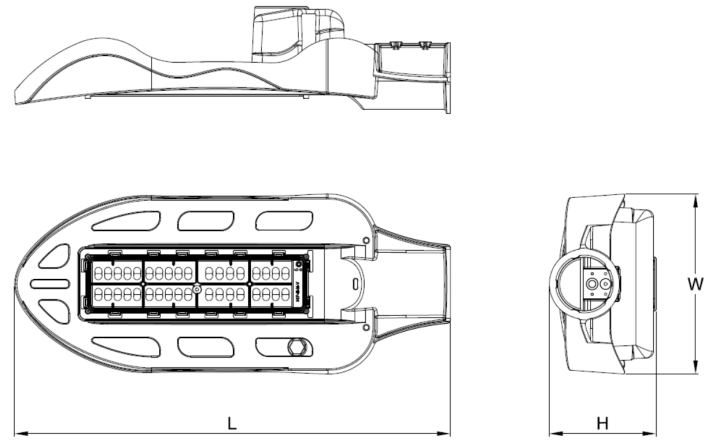

Mechanical dimensions:
Model number | L (mm) | W (mm) | H (mm) | Pipe diameter (mm) |
LL-RM***-B0 | 510 | 215 | 126.5 | Ø 63 |
* The above parameters are all typical values.
Light distribution curve diagram:
Package dimensions:
Model number | L (mm) | W (mm) | H (mm) |
LL-RM***-B0 | 576 | 256 | 209 |
