RM
Lattice
The LL-RM LED Street Light Series from CECEP Lattice Technology Co., Ltd is a sophisticated blend of cutting-edge LED technology and smart lighting features, designed to enhance the aesthetic and functional aspects of urban and suburban landscapes. This series complements the robust LL-RK LED Street Light, offering a diverse range of lighting solutions for various applications.
Specifications:
Housing Material: The LL-RM LED street light features a housing made from die-casting aluminum, which is known for its high strength, durability, and resistance to harsh weather conditions. This material ensures the longevity and reliability of the street light.
Input Voltage: The street light is designed to accommodate a wide range of input voltages, from AC 100 to 277 volts. This versatility allows the light to be used in various electrical systems without the need for additional voltage converters.
Input Frequency: It operates on both 50 and 60 hertz frequencies, making it suitable for use in regions with either standard, ensuring compatibility with the global power grid.
Power Factor (PF): With a power factor of 0.95, the street light offers high energy efficiency by minimizing the wasted electrical power, leading to cost savings and reduced environmental impact.
Correlated Color Temperature (CCT): The light provides a choice of color temperatures—3000K, 4000K, and 5000K—to suit different lighting preferences and applications, from warm white to cool white.
Color Rendering Index (CRI): The CRI of ≥70 ensures that the light accurately renders colors, which is essential for clear visibility and enhancing the visual appeal of the illuminated areas.
Surge Protection: The street light is equipped with surge protection rated at 10KV, which is applied to models higher than 60 watts. This feature safeguards the light from voltage spikes, ensuring its longevity and reliability.
Operating Environment: The device is engineered to function optimally in a wide range of temperatures, from -35℃C to 55℃, and humidity levels from 10% to 90% relative humidity, making it suitable for various climates and weather conditions.
Features:
IP66 Protection Class: The IP66 rating indicates that the street light is completely dust-tight and can withstand powerful water jets, making it ideal for outdoor installations where it may be exposed to heavy rain or other adverse weather conditions.
Warranty: The manufacturer offers a 5-year warranty, reflecting confidence in the product's quality and durability.
Design and Material: The die-casting aluminum housing not only ensures robustness but also contributes to an aesthetically pleasing design. The material is efficient in dissipating heat, which is crucial for the LED's performance and lifespan.
Chip Quality: The use of international top-brand chips ensures high-quality light output and long-lasting performance.
Applications:
Road Lighting: The LL-RM LED street light is suitable for a variety of road lighting applications, including urban expressways, main roads, sub-arterial roads, and branches, as well as illuminating factories, gardens, and residential areas.
Temperature Range: With its ability to operate stably in temperatures ranging from -35℃C to 55℃C, the street light is ideal for regions with extreme temperature variations.

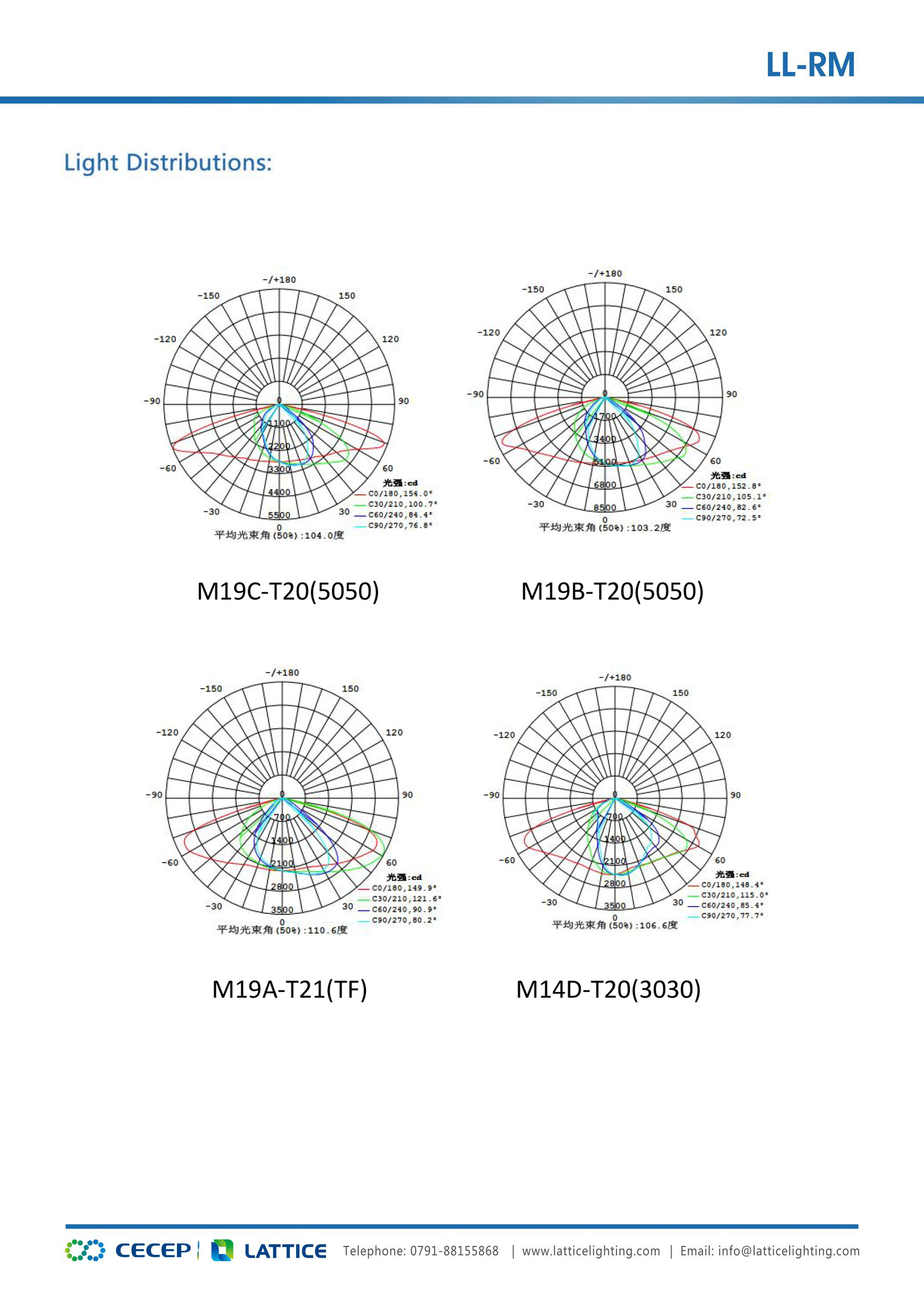

Light Distribution Options: The street light offers a variety of light distribution options, making it widely applicable to all kinds of roads and areas that require efficient and high-quality lighting.
Optional Accessories: The light can be equipped with a single controller or a NEMA receptacle and photocell for added functionality and convenience, allowing for greater control and automation in lighting systems.
Thermal Simulation:
The thermal simulation data for the product highlights its efficient air convection design, which results in optimal heat dissipation. During the test, the maximum temperature reached was 54.2°C, which is an impressive performance considering the ambient temperature was maintained at a stable 25°C. The single light source consumed less than 2W of power at a 5050 SMD configuration, indicating energy efficiency. This effective heat management ensures the product operates reliably even in conditions where heat buildup could be an issue, contributing to its durability and long lifespan.
In summary, the LL-RM LED street light is a high-performance, durable, and versatile lighting solution designed for a wide range of outdoor applications, offering energy efficiency, long lifespan, and adaptability to various environmental conditions.
