Product Overview:

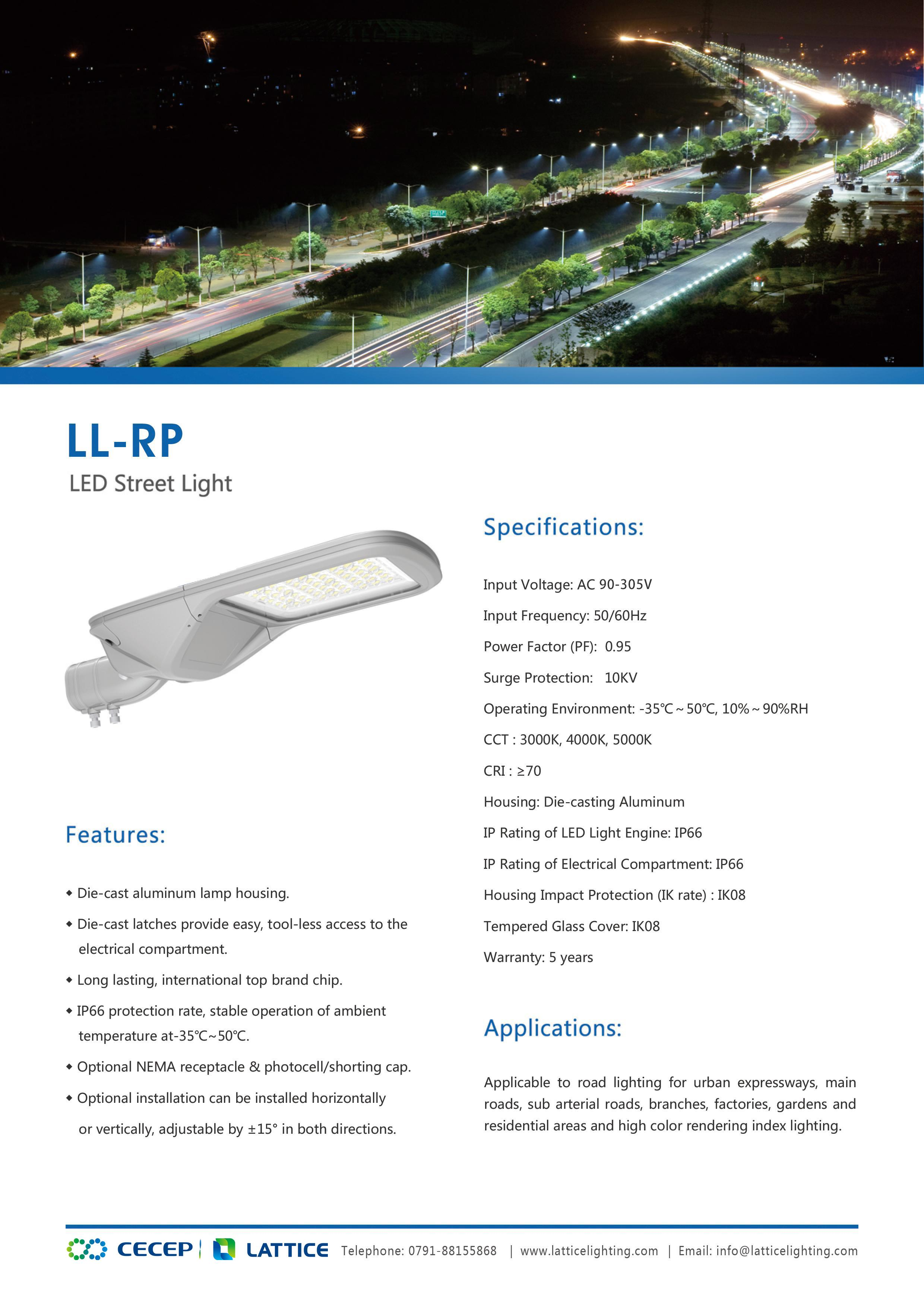

The LL-RP LED Street Light is a cutting-edge lighting solution designed for main roads and other critical urban areas. With its innovative design and robust construction, this street light not only provides reliable illumination but also enhances the aesthetic appeal of the cityscape. Its features and applications make it an ideal choice for modern cities seeking energy-efficient and environmentally friendly lighting options.

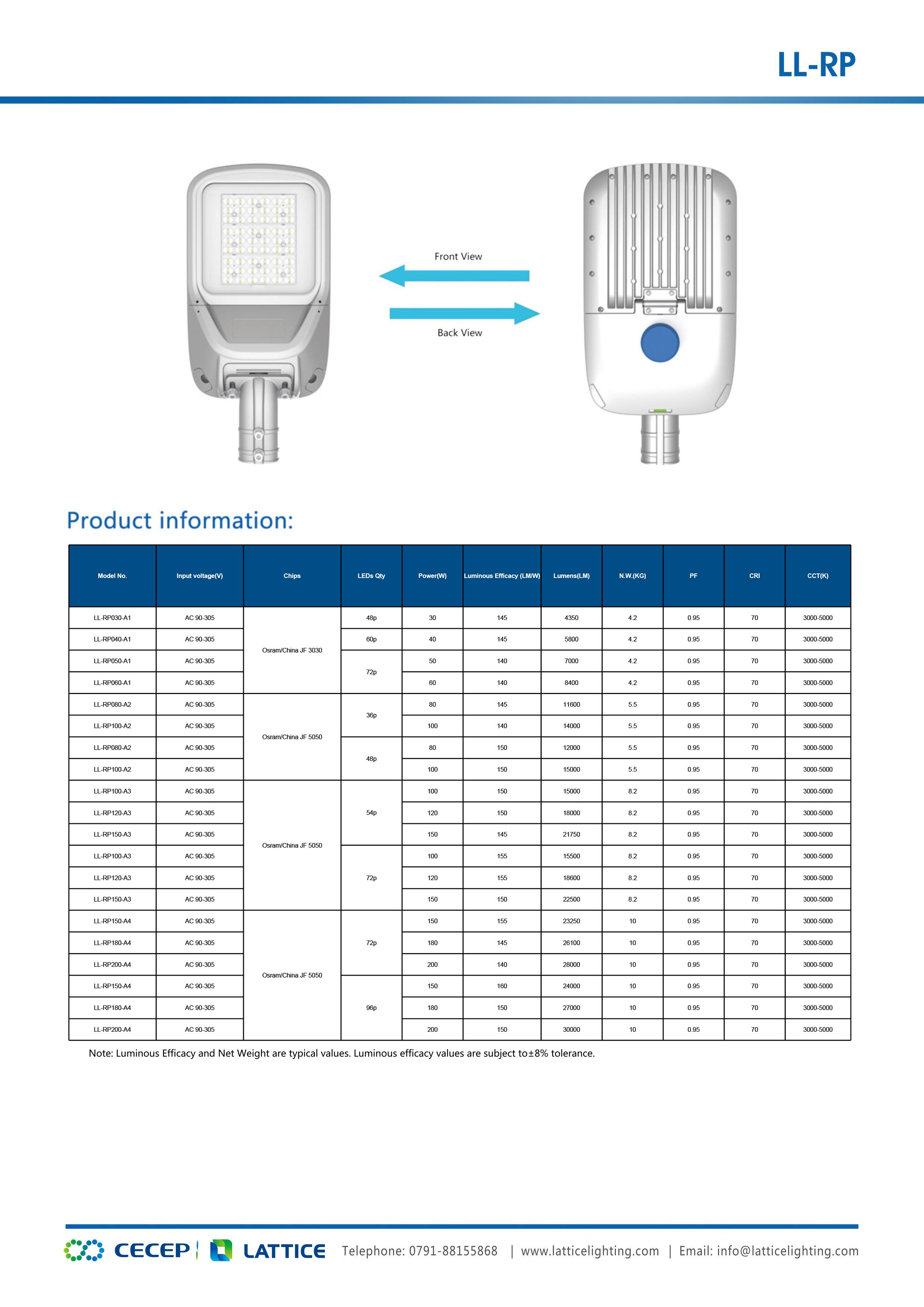

Specifications:
Input Voltage: The LL-RP LED Street Light operates on an input voltage range of AC 90-305V, making it versatile for use with various electrical systems worldwide.
Input Frequency: It is designed to work with both 50Hz and 60Hz input frequencies, ensuring compatibility with the power grids of different countries.
Power Factor (PF): A power factor of 0.95 indicates high energy efficiency, reducing energy waste and lowering operational costs.
Surge Protection: The light is equipped with a surge protection level of 10KV, safeguarding it against voltage spikes that could damage the fixture.
Operating Environment: The street light is engineered to function in a wide temperature range of -35℃ to 50℃ and humidity levels from 10% to 90% RH, making it suitable for diverse climates.
CCT (Correlated Color Temperature): Offered in three options—3000K, 4000K, and 5000K—allowing for customization of the light's color temperature to fit different applications and preferences.
CRI (Color Rendering Index): With a CRI of ≥70, the light ensures accurate color rendering, which is crucial for visibility and enhancing the visual appeal of illuminated areas.
Housing: The die-casting aluminum housing is robust and provides efficient heat dissipation, contributing to the light's longevity.
Features:
IP Ratings: Both the LED light engine and the electrical compartment have an IP66 rating, meaning they are dust-tight and can withstand powerful water jets, ideal for outdoor use.
Impact Protection: The housing and tempered glass cover are rated IK08, providing protection against impacts and ensuring durability.
Easy Access: Die-cast latches allow for tool-less access to the electrical compartment, simplifying maintenance and bulb replacement.
Top Brand Chip: The use of international top brand chips ensures high-quality, long-lasting performance.
Warranty: The product comes with a 5-year warranty, reflecting the manufacturer's confidence in its reliability.
Applications:
Road Lighting: The LL-RP is suitable for various road lighting applications, including urban expressways, main roads, sub-arterial roads, branches, factories, gardens, and residential areas.
High Color Rendering: The high CRI makes it ideal for areas where accurate color representation is essential.
Optional Accessories: The light can be fitted with a NEMA receptacle & photocell/shorting cap for added functionality and energy efficiency.
Installation Options:
Adjustable Mounting: The light can be installed horizontally or vertically, with an adjustable angle of ±15° in both directions, providing flexibility in positioning for optimal light distribution.
Leveling Aid: A bubble level is provided for easy leveling during installation, ensuring proper alignment and even illumination.
Disconnector: An electric safety disconnector is available as an optional accessory for added safety during installation and maintenance.
Pole Diameter Compatibility: The light is designed to match pole diameters ranging from 32-48 mm to 48-62 mm, ensuring compatibility with a wide range of street light poles.
IP66 Rated Electrical Compartment: The electrical compartment's IP66 rating ensures protection against dust and water ingress, maintaining the light's performance in harsh conditions.
In summary, the LL-RP LED Street Light is a high-performance, durable, and versatile lighting solution designed for a wide range of outdoor applications, offering energy efficiency, long lifespan, and adaptability to various environmental conditions. Its robust construction and wide range of features make it an excellent choice for enhancing visibility and aesthetics in urban and residential settings.
Product Overview:
The LL-RP LED Street Light is a cutting-edge lighting solution designed for main roads and other critical urban areas. With its innovative design and robust construction, this street light not only provides reliable illumination but also enhances the aesthetic appeal of the cityscape. Its features and applications make it an ideal choice for modern cities seeking energy-efficient and environmentally friendly lighting options.
Specifications:
Input Voltage: The LL-RP LED Street Light operates on an input voltage range of AC 90-305V, making it versatile for use with various electrical systems worldwide.
Input Frequency: It is designed to work with both 50Hz and 60Hz input frequencies, ensuring compatibility with the power grids of different countries.
Power Factor (PF): A power factor of 0.95 indicates high energy efficiency, reducing energy waste and lowering operational costs.
Surge Protection: The light is equipped with a surge protection level of 10KV, safeguarding it against voltage spikes that could damage the fixture.
Operating Environment: The street light is engineered to function in a wide temperature range of -35℃ to 50℃ and humidity levels from 10% to 90% RH, making it suitable for diverse climates.
CCT (Correlated Color Temperature): Offered in three options—3000K, 4000K, and 5000K—allowing for customization of the light's color temperature to fit different applications and preferences.
CRI (Color Rendering Index): With a CRI of ≥70, the light ensures accurate color rendering, which is crucial for visibility and enhancing the visual appeal of illuminated areas.
Housing: The die-casting aluminum housing is robust and provides efficient heat dissipation, contributing to the light's longevity.
Features:
IP Ratings: Both the LED light engine and the electrical compartment have an IP66 rating, meaning they are dust-tight and can withstand powerful water jets, ideal for outdoor use.
Impact Protection: The housing and tempered glass cover are rated IK08, providing protection against impacts and ensuring durability.
Easy Access: Die-cast latches allow for tool-less access to the electrical compartment, simplifying maintenance and bulb replacement.
Top Brand Chip: The use of international top brand chips ensures high-quality, long-lasting performance.
Warranty: The product comes with a 5-year warranty, reflecting the manufacturer's confidence in its reliability.
Applications:
Road Lighting: The LL-RP is suitable for various road lighting applications, including urban expressways, main roads, sub-arterial roads, branches, factories, gardens, and residential areas.
High Color Rendering: The high CRI makes it ideal for areas where accurate color representation is essential.
Optional Accessories: The light can be fitted with a NEMA receptacle & photocell/shorting cap for added functionality and energy efficiency.
Installation Options:
Adjustable Mounting: The light can be installed horizontally or vertically, with an adjustable angle of ±15° in both directions, providing flexibility in positioning for optimal light distribution.
Leveling Aid: A bubble level is provided for easy leveling during installation, ensuring proper alignment and even illumination.
Disconnector: An electric safety disconnector is available as an optional accessory for added safety during installation and maintenance.
Pole Diameter Compatibility: The light is designed to match pole diameters ranging from 32-48 mm to 48-62 mm, ensuring compatibility with a wide range of street light poles.
IP66 Rated Electrical Compartment: The electrical compartment's IP66 rating ensures protection against dust and water ingress, maintaining the light's performance in harsh conditions.
In summary, the LL-RP LED Street Light is a high-performance, durable, and versatile lighting solution designed for a wide range of outdoor applications, offering energy efficiency, long lifespan, and adaptability to various environmental conditions. Its robust construction and wide range of features make it an excellent choice for enhancing visibility and aesthetics in urban and residential settings.
