RN
Lattice
Specifications:
Input voltage: 100-240Vac
Input frequency: 50/60Hz
Power factor (PF): 0.95
Surge protection level: common mode 10kV
Working environment temperature: -35 ℃~55 ℃
Working environment humidity: 10%~90%
Color temperature (CCT): 3000K, 4000K, 5000K
Color rendering index (CRI): ≥70
Main material: ADC12
IP protection level: IP65
Service life: ＞50000 hours
*The above parameters are all typical values, and the low power surge level is common mode 6kV
The LL-RN LED Street Light, crafted by CECEP Lattice Technology Co., Ltd. is a cutting-edge LED street lighting solution designed to meet the diverse illumination needs of modern urban environments. This product integrates advanced LED technology with innovative design features to ensure efficiency, longevity, and reliability in various urban settings.
Detailed Product Features:
Double Ring Frame Design: The LL-RN series boasts a robust double ring frame structure, enhancing the stability and impact resistance of the fixture, ensuring reliable performance under various weather conditions.
UV-Resistant Optical PC Lens: The lens is made from high-quality polycarbonate (PC) material, which is highly resistant to weathering and UV degradation, maintaining clarity and light efficiency even after prolonged exposure to the elements.
Surface UV Protective Coating: To further extend the lifespan of the product, the LL-RN LED street light features a special UV protective coating on the outer shell, preventing material aging and color fading caused by ultraviolet rays.
Professional Optical Design: The LL-RN series utilizes professional optical design to ensure even light distribution, reducing glare and providing a comfortable visual environment for pedestrians and vehicles, enhancing safety and energy efficiency.
Intelligent Control Options: Compatible with Cat. 1, NB, or PLC single light controllers, these controllers enable remote control and intelligent dimming, adjusting brightness automatically based on actual lighting needs, thus saving energy and extending the lifespan of the fixture.
High-Performance Circuit Design: The circuit design of the LL-RN series focuses on efficiency and reliability, with each LED module operating independently. This ensures that even if one module fails, the entire fixture continues to function, providing continuous and reliable illumination.
Durable Materials: The main material, ADC12 aluminum alloy, is lightweight, corrosion-resistant, and has excellent heat dissipation properties, allowing the LL-RN LED street light to perform stably in harsh outdoor conditions.
IP65 Protection Rating: This rating means the LL-RN LED street light can withstand dust and water jet intrusion, making it suitable for use in various outdoor environments.
Long Lifespan: The LL-RN LED street light is designed to last over 50,000 hours, significantly reducing maintenance and replacement frequency and lowering long-term operational costs.
Application Scenarios:
The LL-RN LED street light is not only suitable for urban street lighting but can also be widely applied in the following scenarios:
Parking Lot Lighting: In parking lots, the LL-RN LED street light offers sufficient brightness to ensure the safety of vehicles and pedestrians.
Industrial Park Lighting: In industrial parks where long-duration lighting is required, the high efficiency and long lifespan of the LL-RN LED street light significantly reduce energy consumption.
Landscape Lighting: The adjustable brightness of the LL-RN LED street light, combined with its fixed color temperature, ensures it is a perfect fit for landscape lighting.

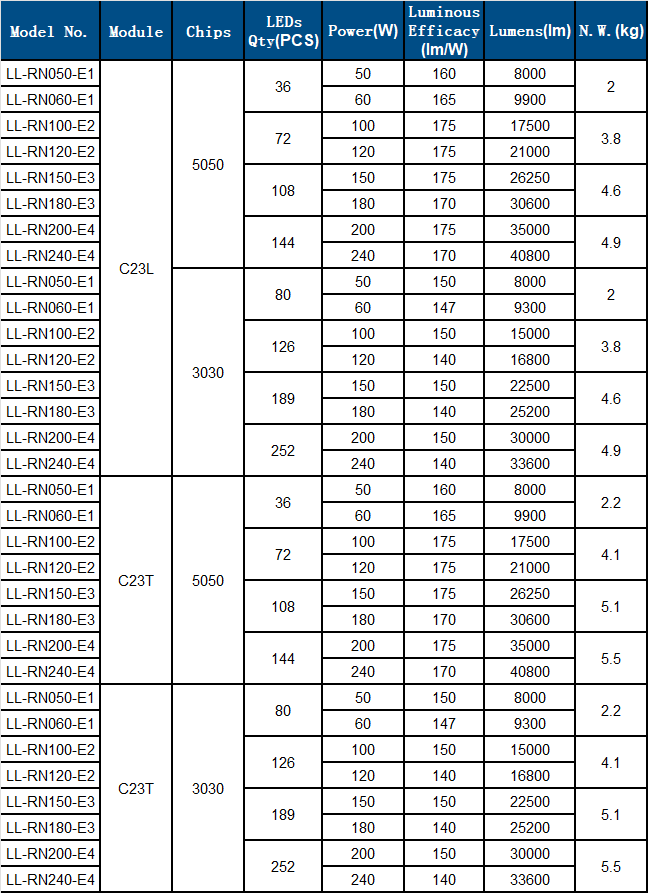

Product information:

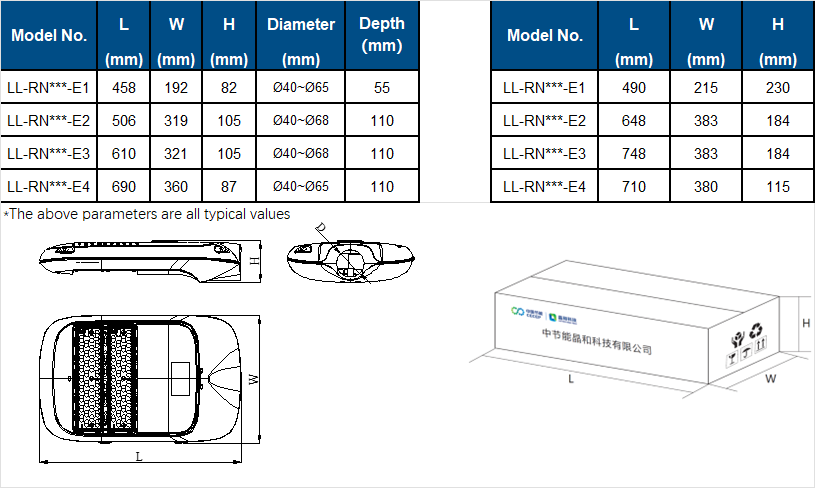

Dimiensions

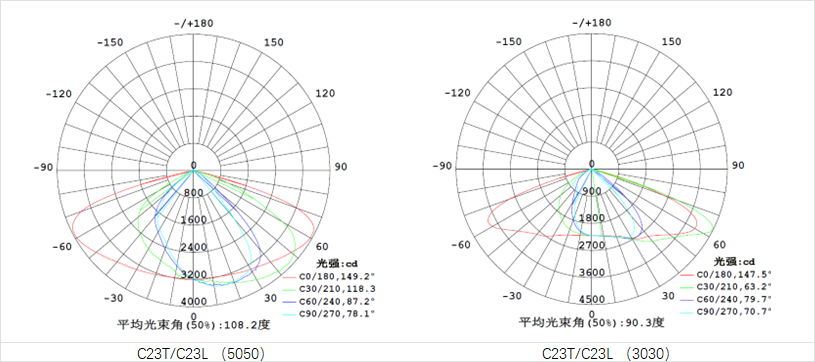

Light Distributions:
Specifications:
Input voltage: 100-240Vac
Input frequency: 50/60Hz
Power factor (PF): 0.95
Surge protection level: common mode 10kV
Working environment temperature: -35 ℃~55 ℃
Working environment humidity: 10%~90%
Color temperature (CCT): 3000K, 4000K, 5000K
Color rendering index (CRI): ≥70
Main material: ADC12
IP protection level: IP65
Service life: ＞50000 hours
*The above parameters are all typical values, and the low power surge level is common mode 6kV
The LL-RN LED Street Light, crafted by CECEP Lattice Technology Co., Ltd. is a cutting-edge LED street lighting solution designed to meet the diverse illumination needs of modern urban environments. This product integrates advanced LED technology with innovative design features to ensure efficiency, longevity, and reliability in various urban settings.
Detailed Product Features:
Double Ring Frame Design: The LL-RN series boasts a robust double ring frame structure, enhancing the stability and impact resistance of the fixture, ensuring reliable performance under various weather conditions.
UV-Resistant Optical PC Lens: The lens is made from high-quality polycarbonate (PC) material, which is highly resistant to weathering and UV degradation, maintaining clarity and light efficiency even after prolonged exposure to the elements.
Surface UV Protective Coating: To further extend the lifespan of the product, the LL-RN LED street light features a special UV protective coating on the outer shell, preventing material aging and color fading caused by ultraviolet rays.
Professional Optical Design: The LL-RN series utilizes professional optical design to ensure even light distribution, reducing glare and providing a comfortable visual environment for pedestrians and vehicles, enhancing safety and energy efficiency.
Intelligent Control Options: Compatible with Cat. 1, NB, or PLC single light controllers, these controllers enable remote control and intelligent dimming, adjusting brightness automatically based on actual lighting needs, thus saving energy and extending the lifespan of the fixture.
High-Performance Circuit Design: The circuit design of the LL-RN series focuses on efficiency and reliability, with each LED module operating independently. This ensures that even if one module fails, the entire fixture continues to function, providing continuous and reliable illumination.
Durable Materials: The main material, ADC12 aluminum alloy, is lightweight, corrosion-resistant, and has excellent heat dissipation properties, allowing the LL-RN LED street light to perform stably in harsh outdoor conditions.
IP65 Protection Rating: This rating means the LL-RN LED street light can withstand dust and water jet intrusion, making it suitable for use in various outdoor environments.
Long Lifespan: The LL-RN LED street light is designed to last over 50,000 hours, significantly reducing maintenance and replacement frequency and lowering long-term operational costs.
Application Scenarios:
The LL-RN LED street light is not only suitable for urban street lighting but can also be widely applied in the following scenarios:
Parking Lot Lighting: In parking lots, the LL-RN LED street light offers sufficient brightness to ensure the safety of vehicles and pedestrians.
Industrial Park Lighting: In industrial parks where long-duration lighting is required, the high efficiency and long lifespan of the LL-RN LED street light significantly reduce energy consumption.
Landscape Lighting: The adjustable brightness of the LL-RN LED street light, combined with its fixed color temperature, ensures it is a perfect fit for landscape lighting.
Product information:
Dimiensions
Light Distributions:
